ROC (Receiver Operating Characteristic) curves

A ROC curve is a plot of the false alarm rate (also known as probability of false detection or POFD) on the x-axis, versus the hit-rate (also known as probability of detection-yes or PODy) on the y-axis.
False Alarm Rate and Hit Rate are defined as:

Hit Rate (PODy) = a/(a+c)
False Alarm Rate (POFD) = b/(b+d)

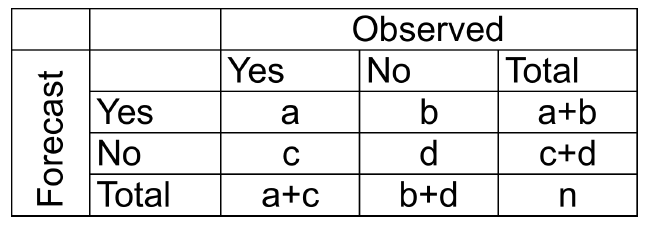

based on this contingency table:

You can read more about creating ROC curves in this presentation, slides 50-53.  Finally, a thorough treatment is presented in a Weather and Forecasting article.

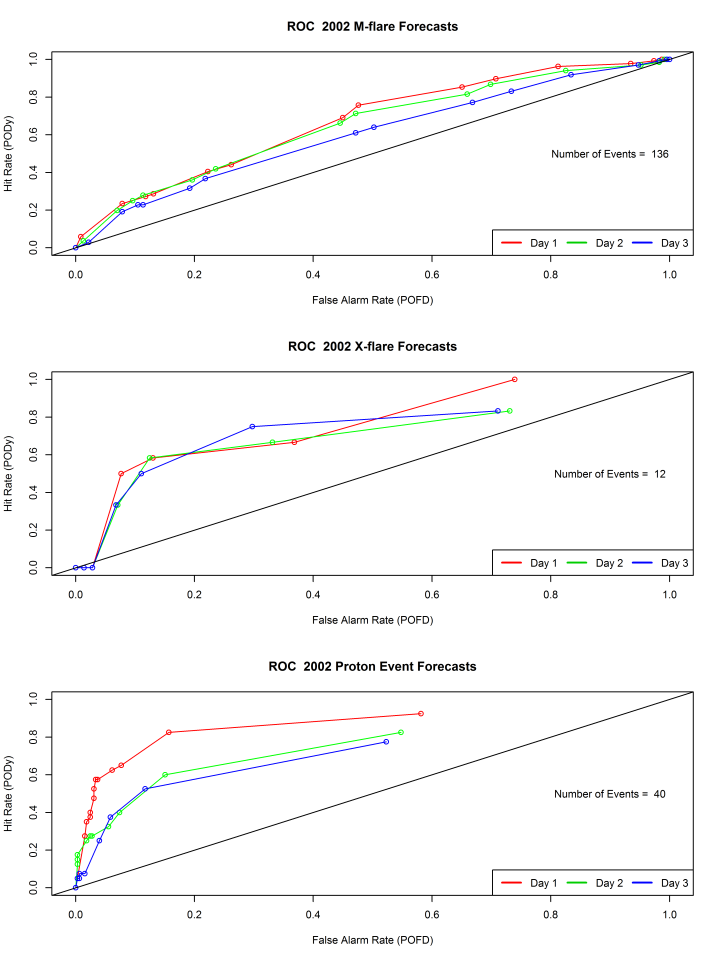

Here's an example:

So, notice that you want your curve for whatever forecast you're making to be above the diagonal, otherwise, you have no skill.  If it's under the diagonal, your forecast is worse than a random guess!  The closer your curve is to the upper left corner, the better your forecast.

If the number of events  (e.g. M-flares) is low, this interpretation will be a bit more tenuous, so the number of events with each plot are included.

The effort to develop ROC curves was spawned by conversations during the ISES Verification Workshop held a couple of years ago and they were recently highlighted in a presentation at this year's European Space Weather Workshop about a flare forecast scoreboard being established at CCMC to mirror their CME prediction scoreboard.

Notice the AUC (area under the curve) is mentioned as a potentially useful measure.

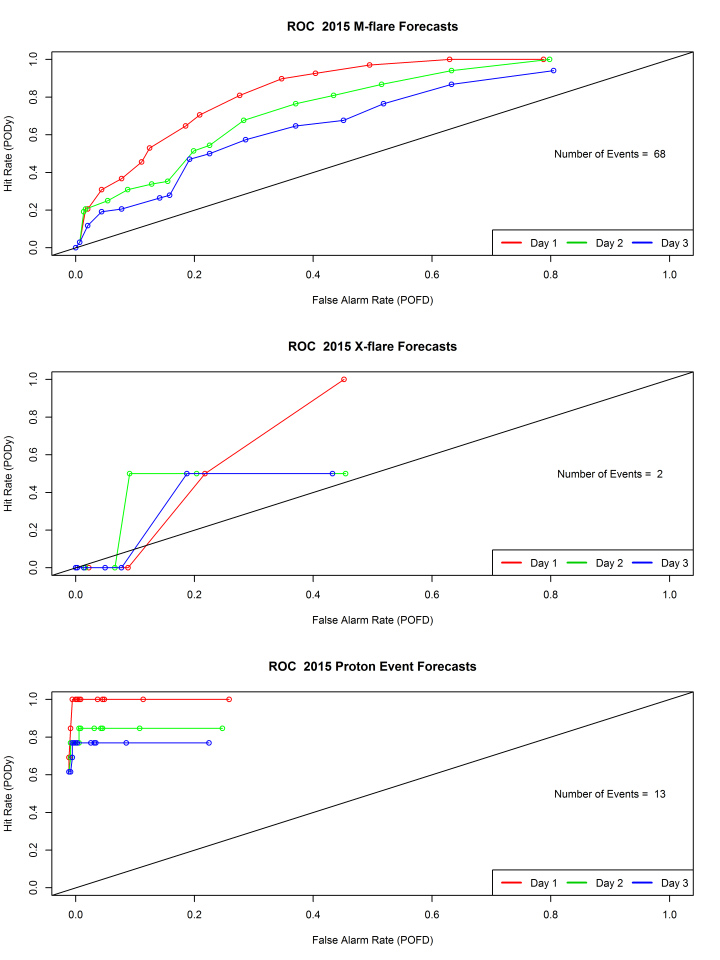

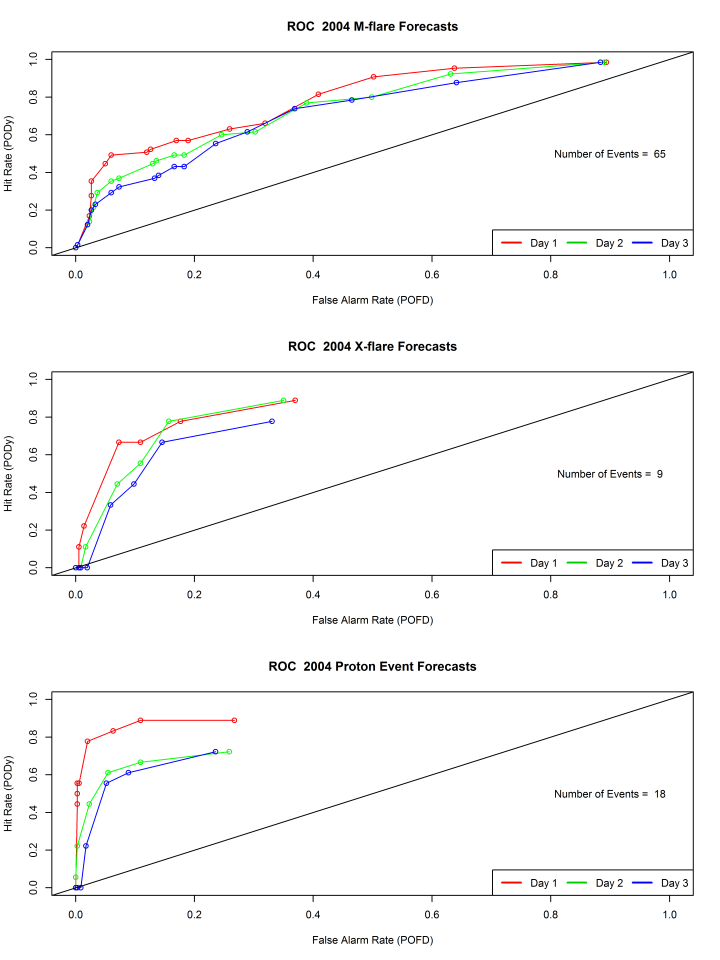

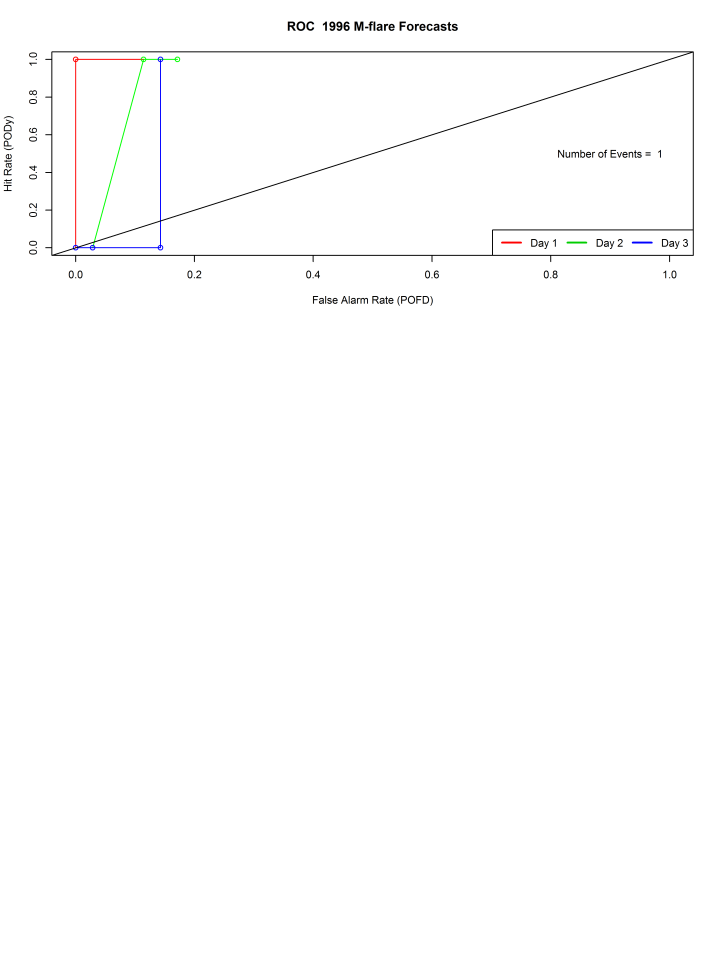

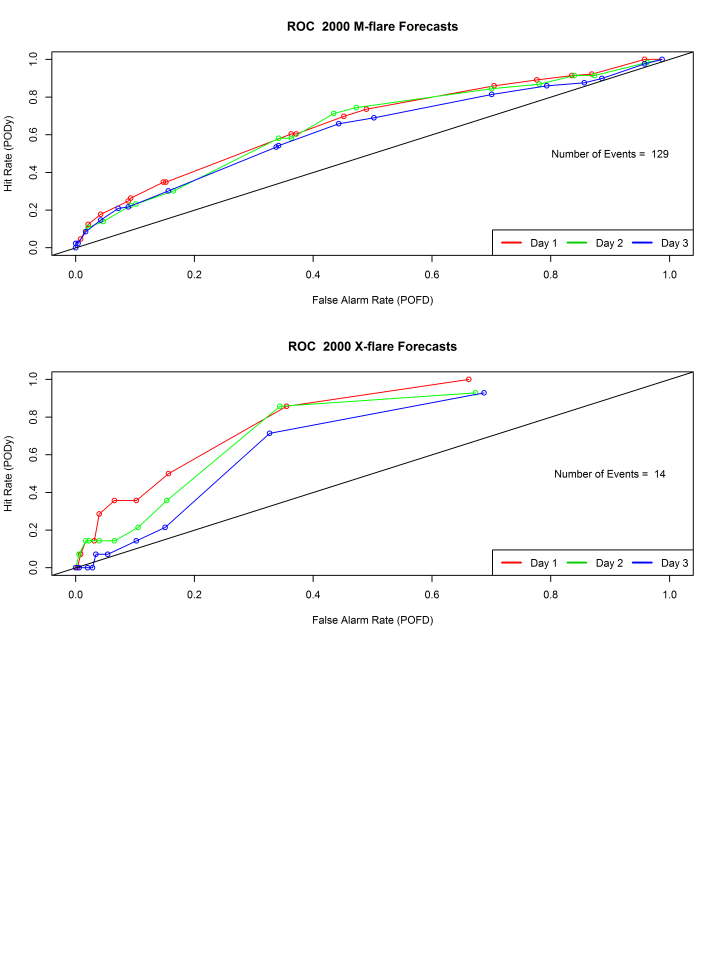

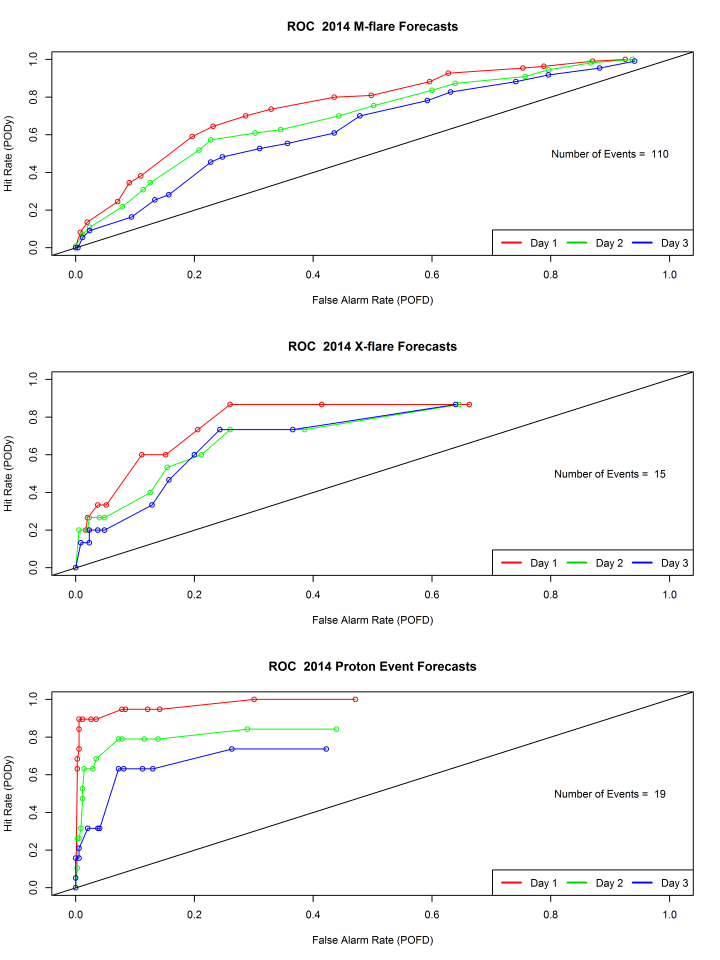

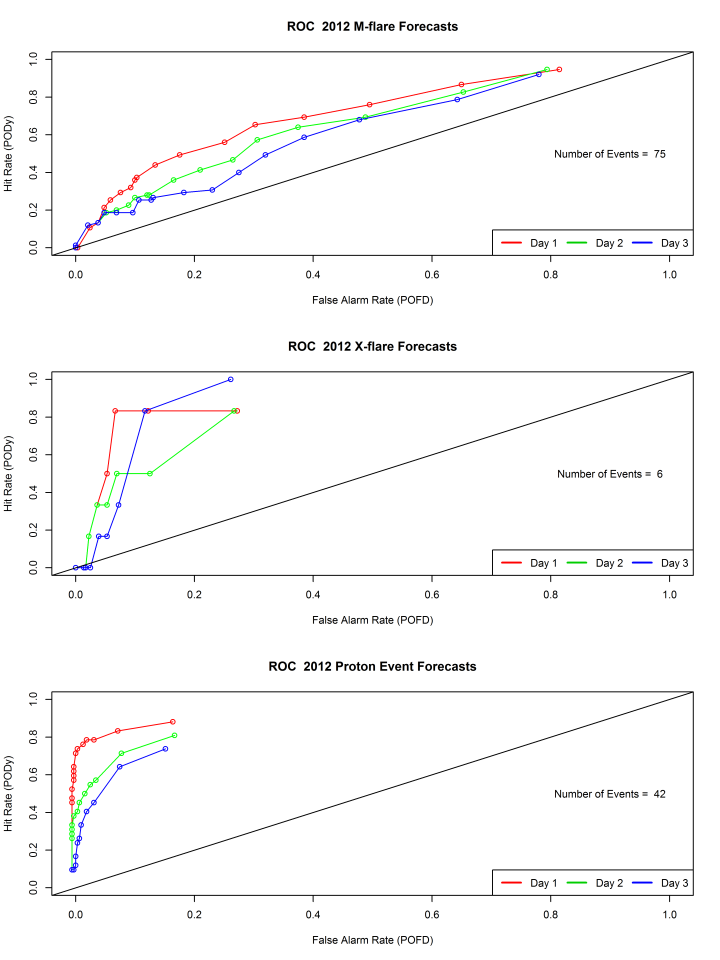

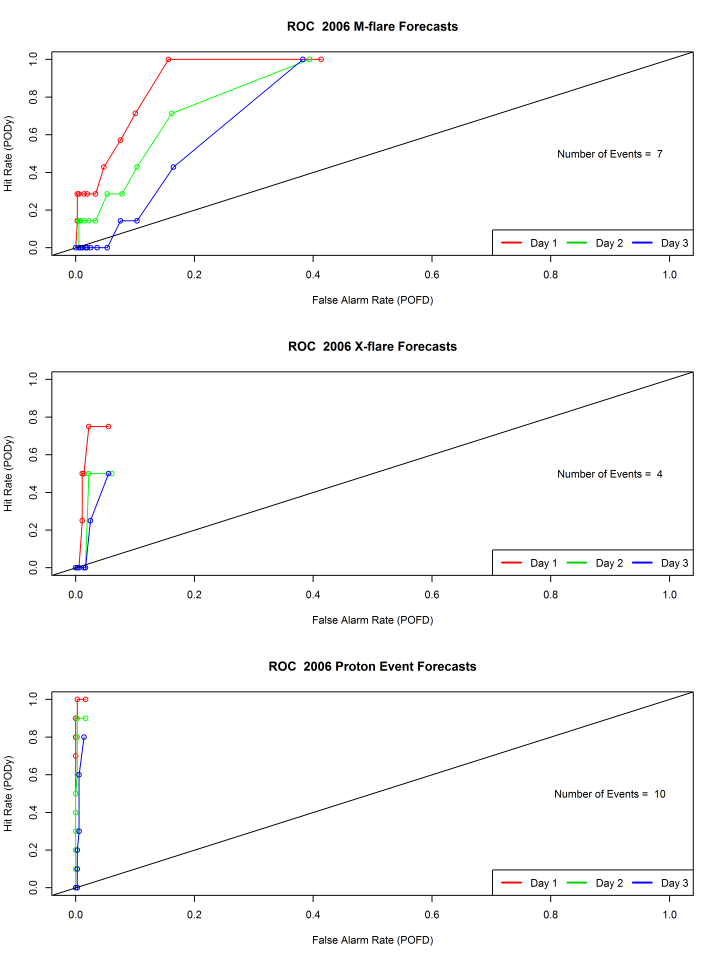

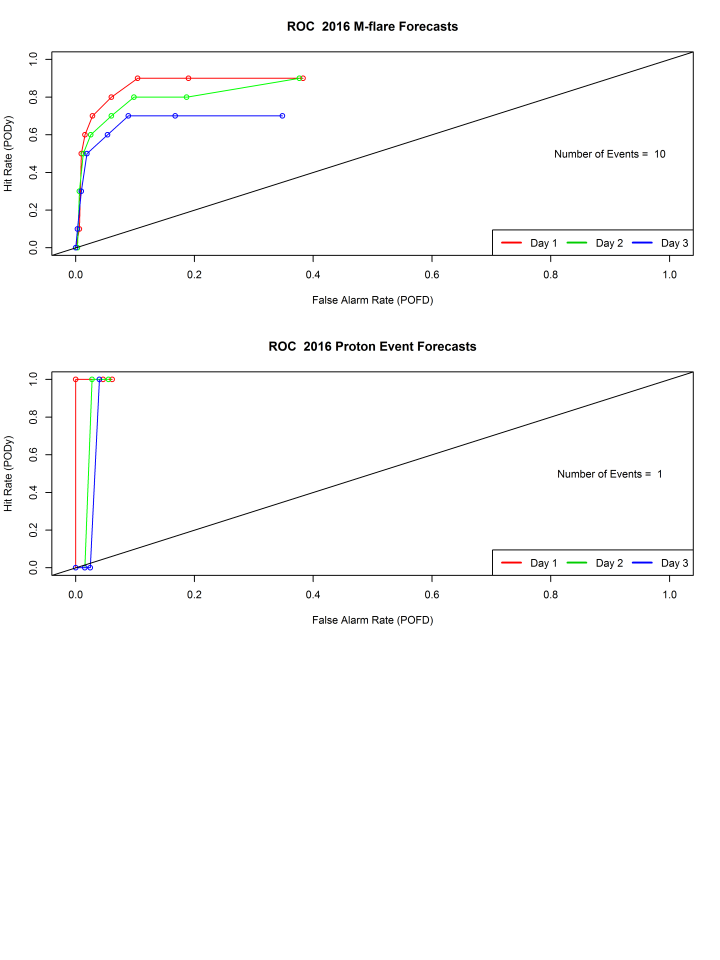

ROC (receiver operating characteristic) curves for SWPC flare forecasts (1996 to the present)

(blank plots indicate no data was available)

ROC Curve Plots   Statistical Data Files
1996   test_stats_1996
1997   test_stats_1997
1998   test_stats_1998
1999   test_stats_1999
2000   test_stats_2000

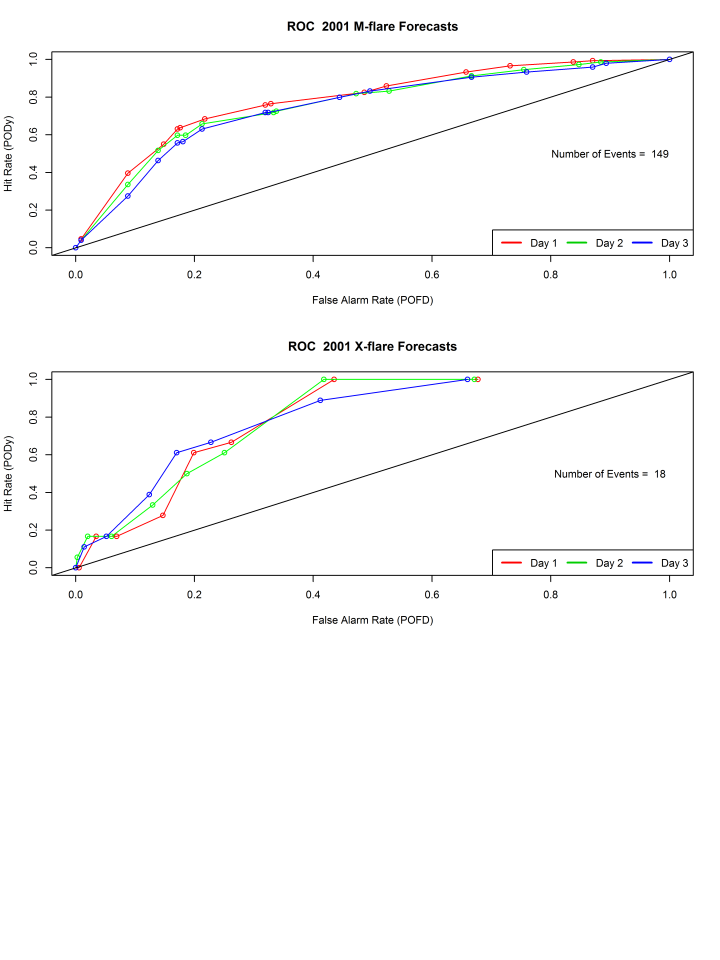

2001   test_stats_2001
2002   test_stats_2002

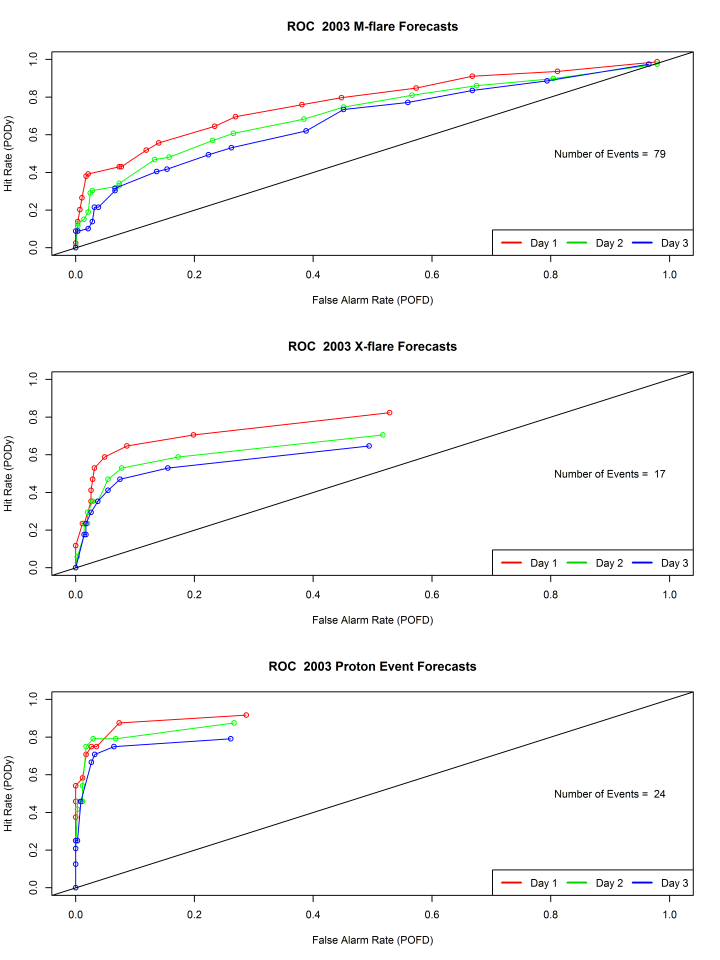

2003   test_stats_2003
2004   test_stats_2004

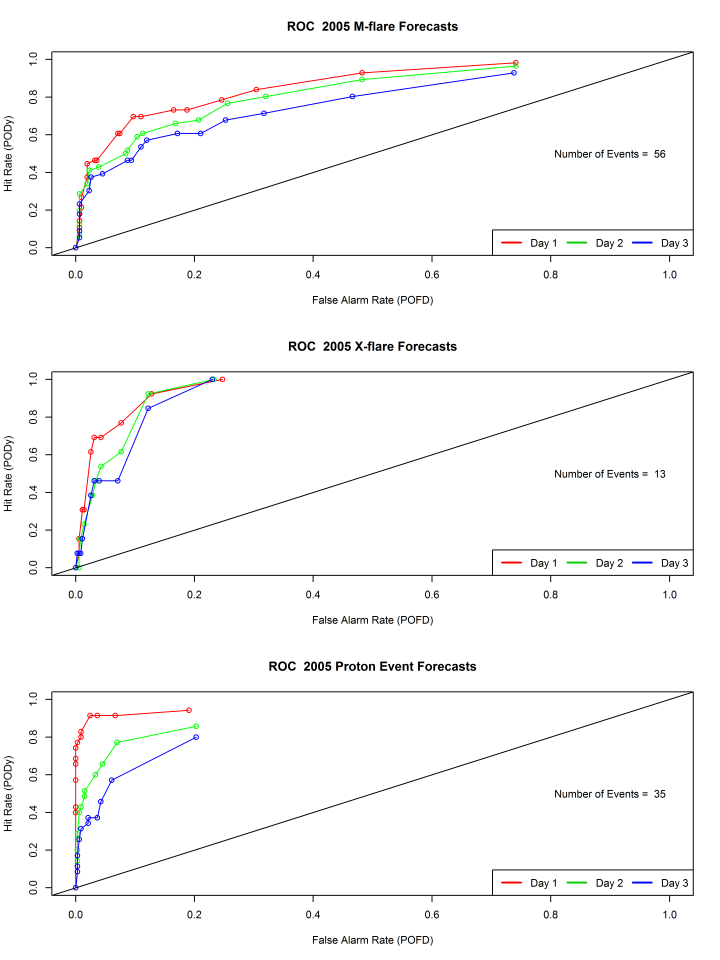

2005   test_stats_2005
2006   test_stats_2006

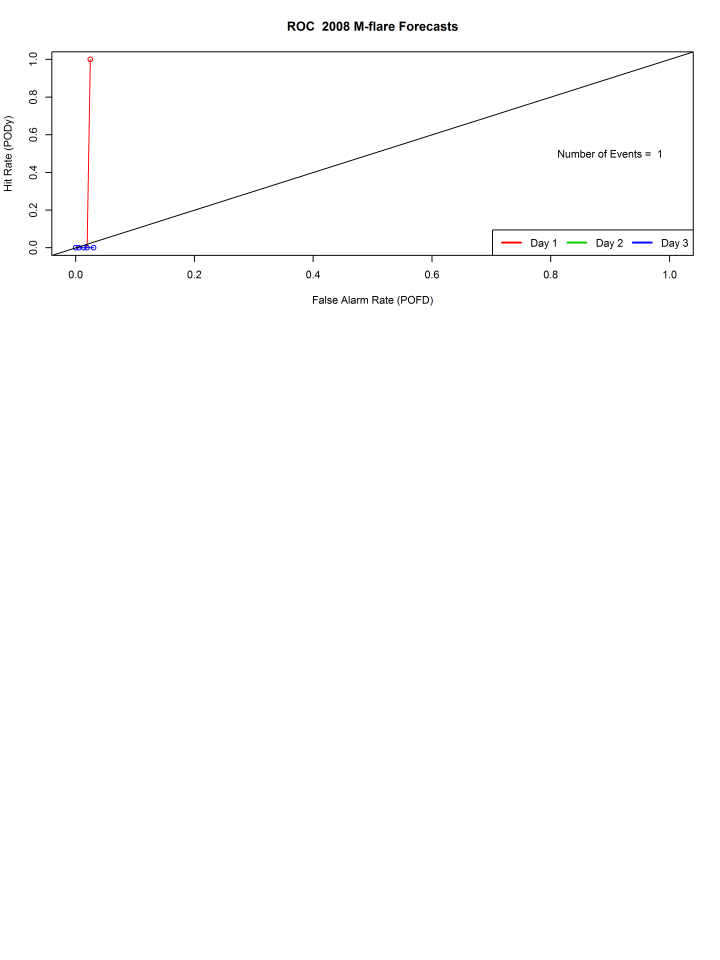

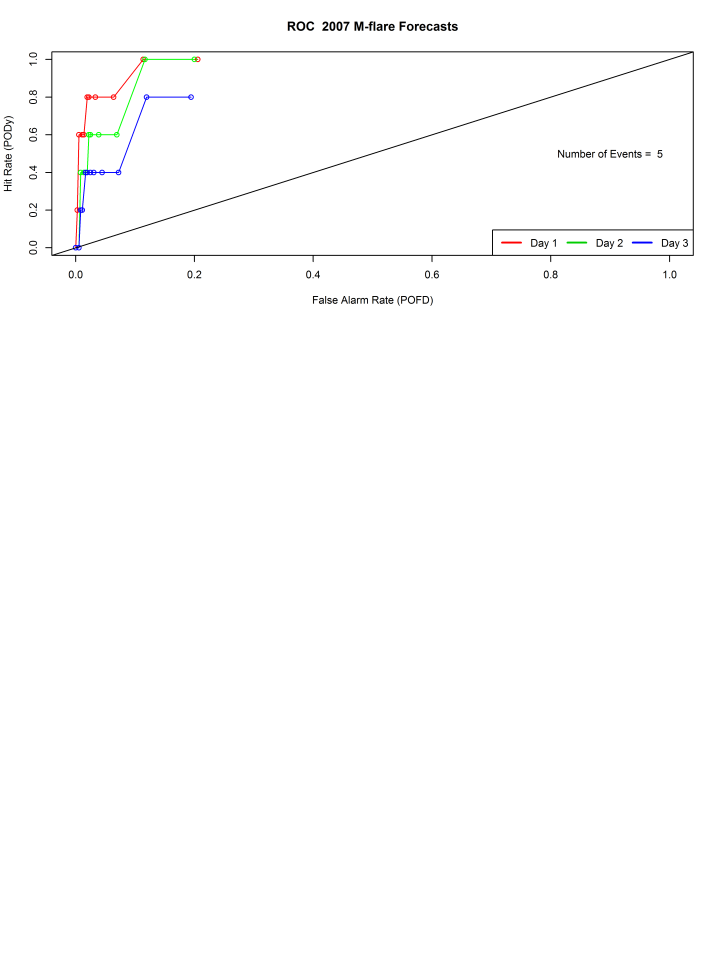

2007   test_stats_2007
2008   test_stats_2008
2009   test_stats_2009

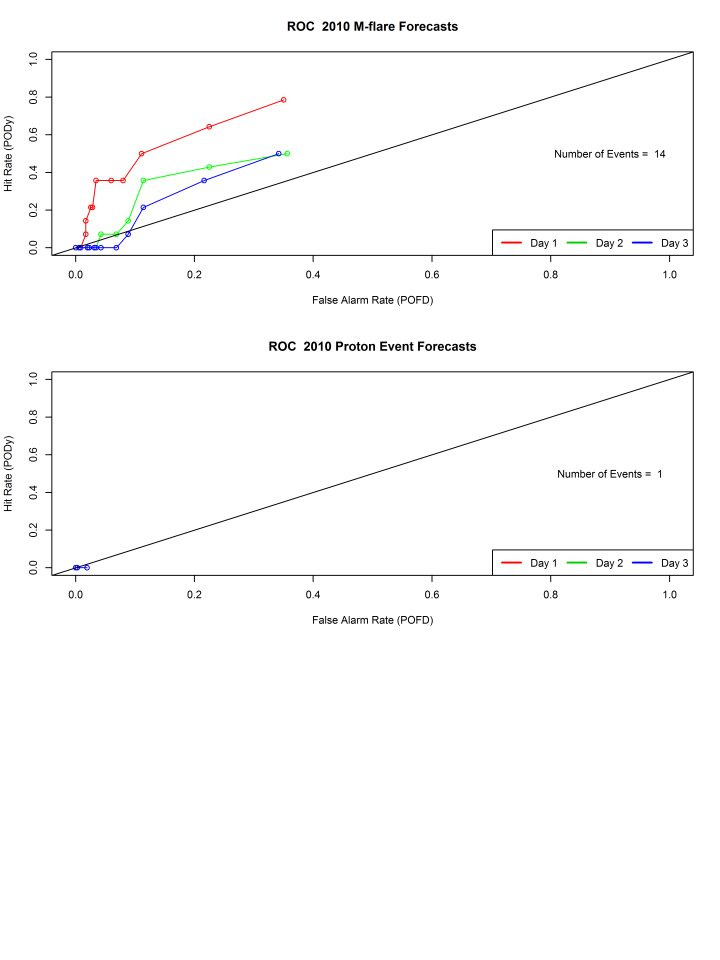

2010   test_stats_2010

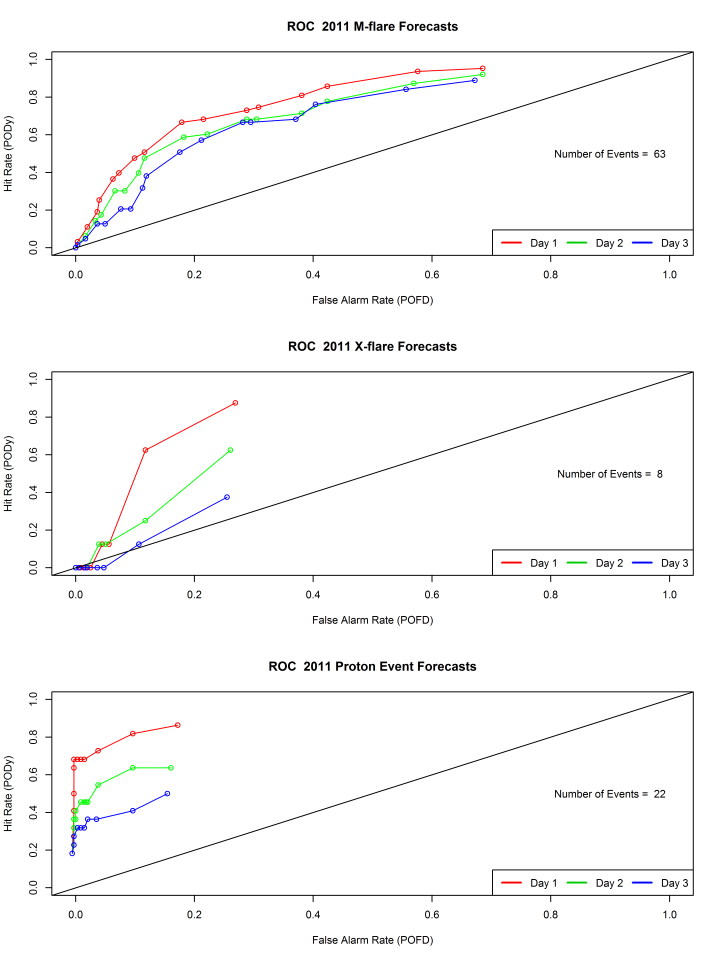

2011   test_stats_2011
2012   test_stats_2012
2013   test_stats_2013
2014   test_stats_2014
2015   test_stats_2015
2016   test_stats_2016
